SIDE ENTRY MIXERS

Side Entry Mixers

Mixtec’s 5000 Series consists of various ranges of side-entry mixers: the 5000, 5050 and 5500.

The 5000 Series mixers are simple pedestal mixers incorporating a shut-off device for easy seal maintenance, mounted horizontally with a seal arrangement to suit the customer’s requirements.

  • Compact design, suitable for applications with limited space.

The 5050 Series is a direct-drive side-entry mixer for smaller, simpler applications that do not require complicated sealing arrangements.

  • Direct-drive side-entry mixer for basic applications with simple sealing needs.

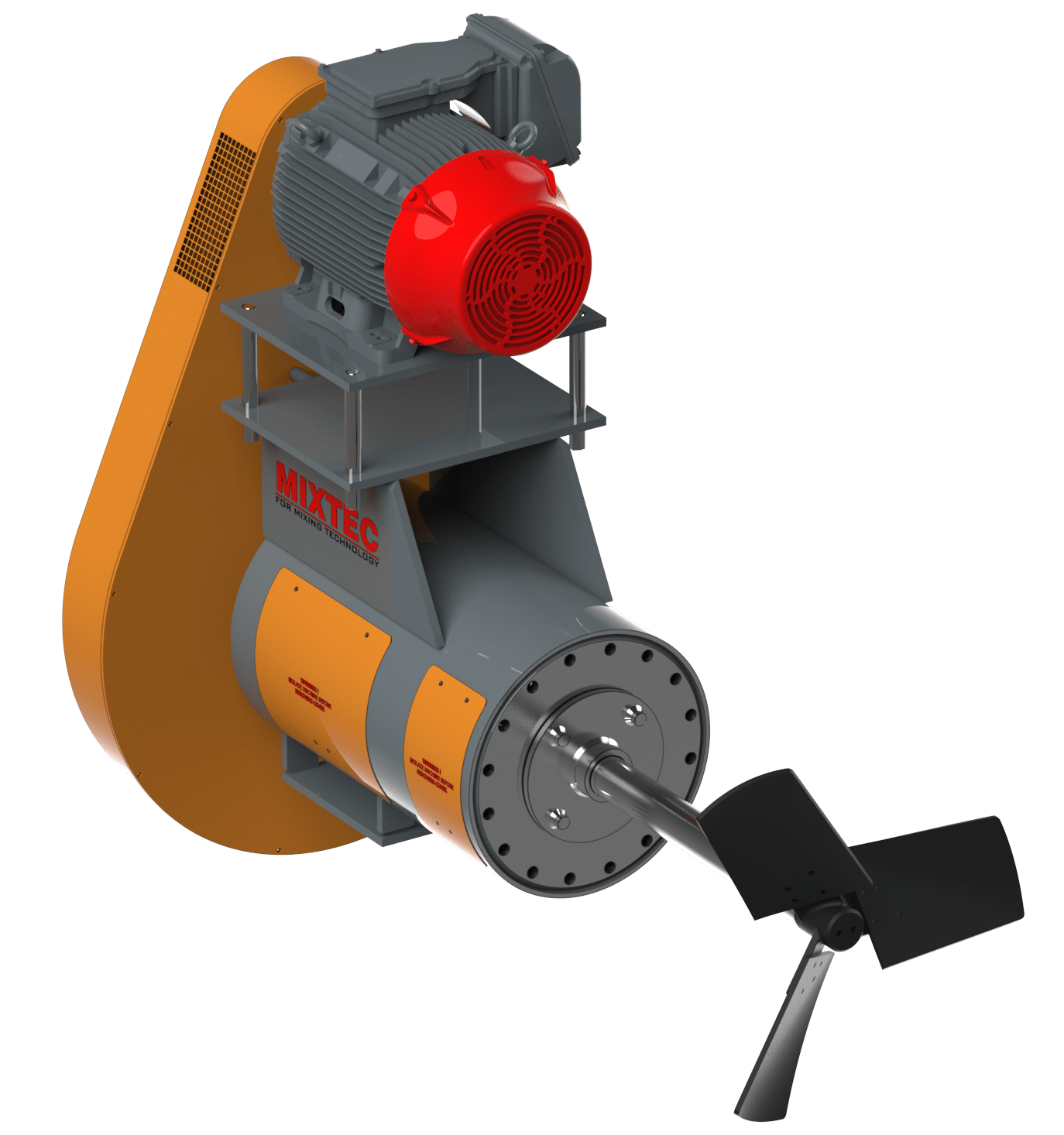

5500 Series

  • Larger, more robust configuration for heavier-duty applications.

The Mixtec 5500 Series mixers are used for pulp homogenisation. Belt-driven, these focus intense mixing around fluid injection points to keep the tank contents even. The built-in mechanical seals prevent leaks, and the shut-off devices make seal replacement easy when needed, cutting down on downtime and keeping things running smoothly.

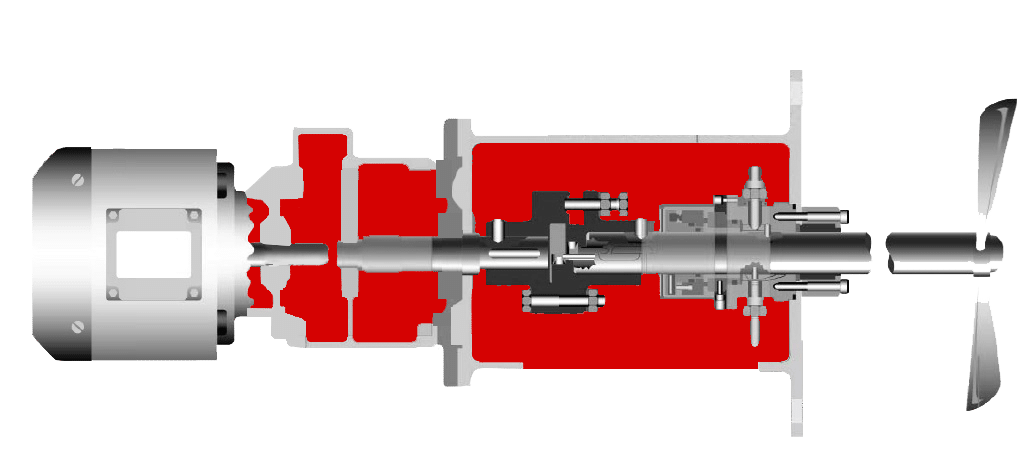

Shut-Off Device Option

Mixtec side-entry mixers are available in two designs: a standard side-entry mixer and a side-entry mixer fitted with a shut-off device.

With the standard side-entry mixer, the tank must be drained in order to access and replace the mechanical seal. In contrast, Mixtec’s new and improved side-entry mixer with a shut-off device allows the mechanical seal to be replaced without draining the tank.

The advantages of this design include reduced downtime, easier maintenance, and minimised product loss.
